De-Carbo
Feature
collapsible containers
Parts are collapsible and small spaces can accommodate for storing.
Therefore ,you can reduce the transportation costs.
Durability against water and chemicals
All parts of De-Carbo are made from plastics and have water-resistance and durability against chemicals.
Therefore, De-Carbo can be washed when stained and darted.
Outdoor usability
Due to the incorporation of agents for weather-fastness, De-Carbo can be used outdoors also.
Differently to wood or metal ,there is no concerns of vermin,mold,corrosion or rusting.

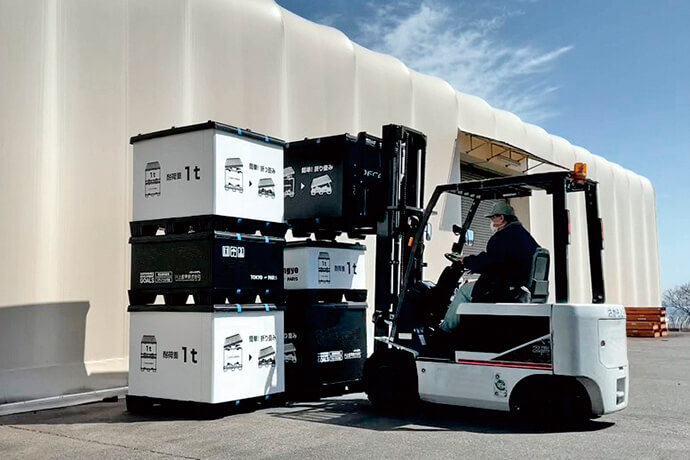

Vertical stacking is OK
Compared to unstable packing by stretch films, you can get the stable and vertical stacking.
Due to projections which work as the preventive measure against collapsing,skidding is prevented when stucked vertically.
Locks are attached to the coverings.
In order to prevent the covers from moving off, covers are furnished with locks and no need of fastening belts.
Basic product lines
Y type
Best-seller type. Dimensions are carefully considered for loading efficiency.
effective inner distance(mm) | outer distance(mm) | weight(kg) | |||||
---|---|---|---|---|---|---|---|
Width | Depth | Height | Width | Depth | Height | ||
Y-710H | 1075 | 1050 | 474 | 1150 | 1118 | 710 | 24.3 |
Y-1050H | 814 | 710 | 28.7 |
K type
Comparing to L type, larger sizes.
effective inner distance(mm) | outer(mm) | weight(kg) | |||||
---|---|---|---|---|---|---|---|
Width | Depth | Height | Width | Depth | Height | ||
K-710H | 1145 | 940 | 499 | 1220 | 1016 | 710 | 23.9 |
K-1050H | 839 | 1050 | 28.2 |
Product-line for custom made
We have many product-lines in various sizes. Height is decided by customers' request.
effective inner dimensions(mm) | outer dimensions(mm) | |||||
---|---|---|---|---|---|---|
width | depth | height | width | depth | height | |
custom-made K type | 1145 | 940 | 1089まで | 1220 | 1016 | Upto 1300 |
cutom-made Q type | 1245 | 845 | 1094まで | 1320 | 914 | |
custom-made U type | 1390 | 1090 | 1094まで | 1470 | 1150 | |
custom-made Y type | 1075 | 1050 | 1064まで | 1150 | 1118 |
We also accept special designs. Send us any questions about the structures and product line of Plapearl.
Guidline of numbers of De-Carbo for containers
Belows are appropriate De-Carbo products for container and/or truck transportation.
In case of 20-Feet container:(depth 6000 x width 2400x height 2600mm)
De-Carbo RY-710H(1,118×1,150×710mm)
→30Set(when foulded: 150 sets)= 2 lines x 5 lines x 3 layers
De-Carbo RH-1050H(1,118x1150x1050mm)
→20Set(when foulded: 120 sets)= 2 lines x 5 lines x 3 layers
De-Carbo ELEVEN R Regular type 710H
(1,155x1150x710mm)
→20Set = 2 lines x 5 lines x 2 layers
Sleeve variation
We accept the custom-made sleeve order depending on the application.
(recommended Plapearl: PGPPZ-2,000g/m2, PGPPZ-3,000g/m2)
One side removable type
One side of sleeves is wholly removable.
L-letter type
Two sides can be wholly removed. Moving in and out of loads are easy.
Drop-in type
The upper-half of one sleeve can be opened with the single touch. Checking and taking out of the inside load is easy.
Interior, optional
We introduce the ideas of the interior designs which could prevent the damages by vibrations and the better workabilities.
